28Sec
Quick
Assembly

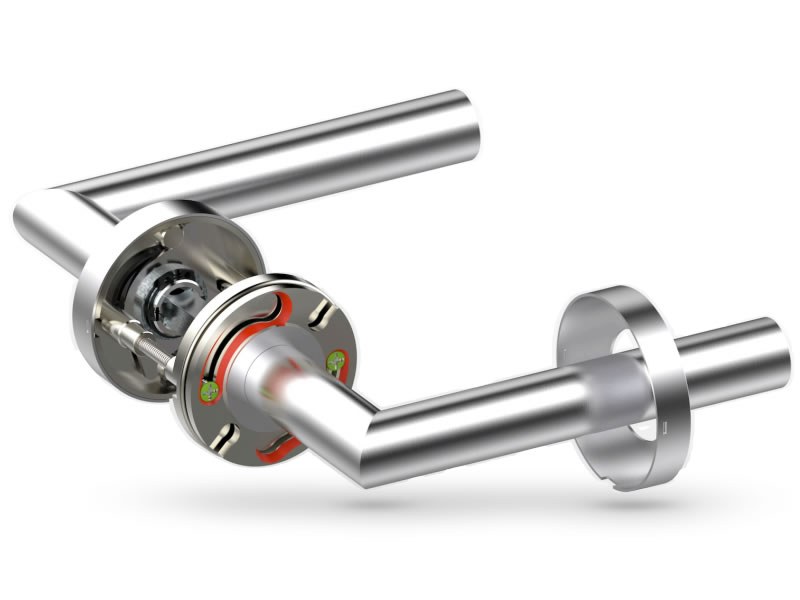

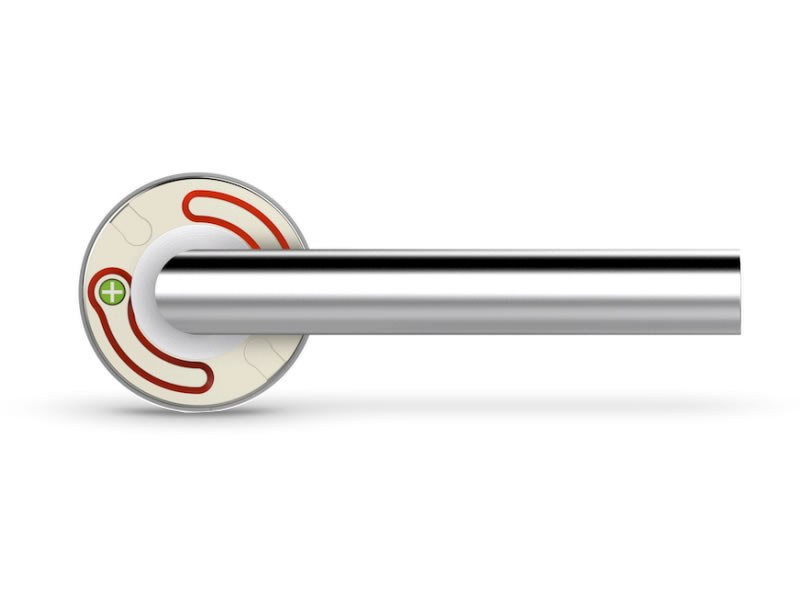

HFS series is a quick assembly door handle. Its innovative design has obtained global patent PCT certification. Number: PCT/CN2024/078164.
Customers were surprised by how simple and fast its operation is. Only takes 28 seconds to install a set of door handles, greatly improving efficiency and reducing costs.
BASIC
DATA
Cover size: Dia53x10mm
Lug of rose: Dia8mm
Customer Choice
Lever design optional.
Finishings optional.
Pre-installed door thickness optional.
HFS Specialized Tool optional.
Match
With
All Your Choices
Whether you favor mortise lock or latch, new door or handle replacement
* Easy to use
* Fast assembly
* Saving time and cost
* EN1906. Grade 3 available
* Optional variety of handles
* Optional variety of finishes
* Optional special tool

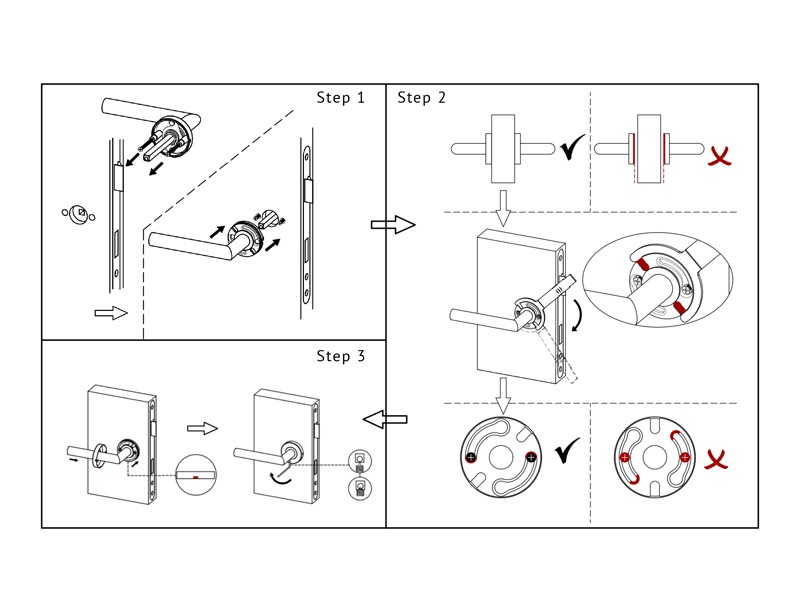

Installation
Guide

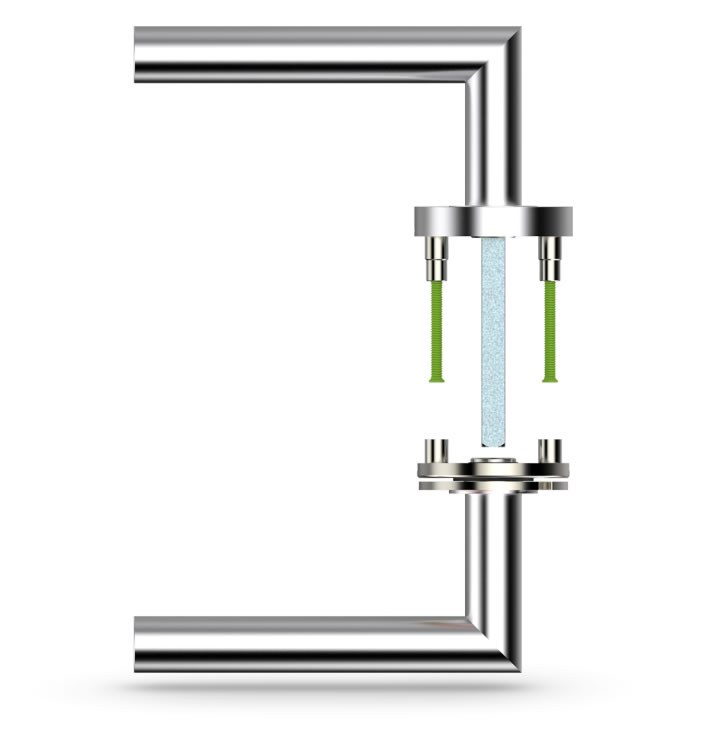

Preparation: Door hole Dia8mm, C-C 38mm.
Step 1. Put handle set into the door. Pre-installed lever for outdoor.
Step 2. Rotating tight till the end.
Step 3. Press-in the rose and tight the grub screw. All Done.

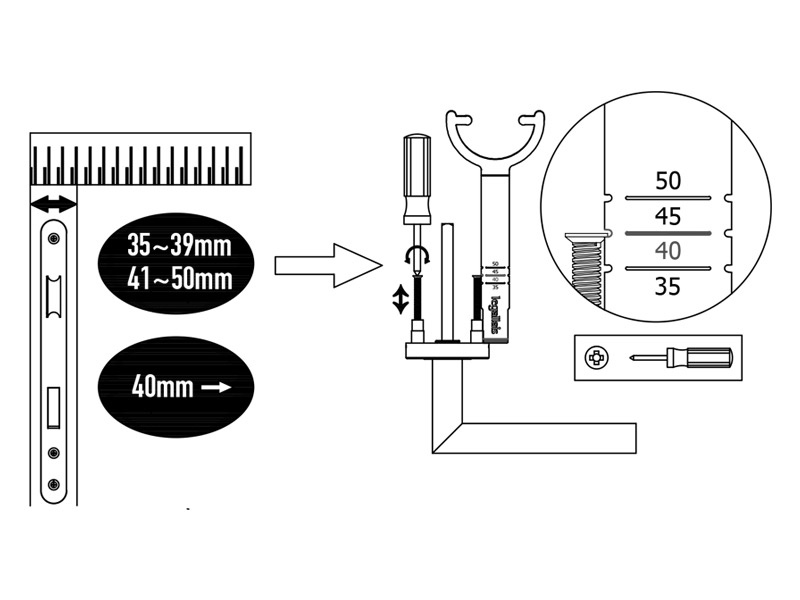

Adjustment
Against To
Special Door Thickness
Pre-installed door thickness = 40mm, go to Step 1. Other thickness:
a. Check the door thickness.
b. Adjust the screw, size A same as door Thickness. HFS tool can assist to finished this job.
c. Go to step 1

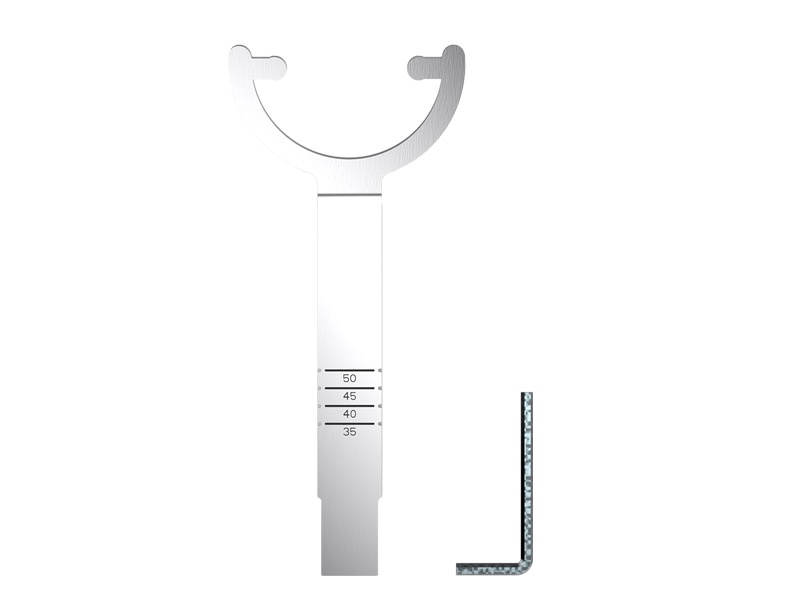

Assembly
Tool
Allen key included with the handle is a tool to install it.
HFS Specialized Tool is a multi-purpose tool. Besides to assist even easier assembly, it includes multiple door thickness scale, which help fitter to adjust and install to non-standard door simply.
